20-750-ENETR A-B high-performance, dual-port EtherNet/IP option adapter
| Brand：Allen-Bradley | Model number：20-750-ENETR |
| Colour：new | Warranty: 12 months |
| Lead Time：3-day working day | Country of origin: United States |
| Price: Please contact us |

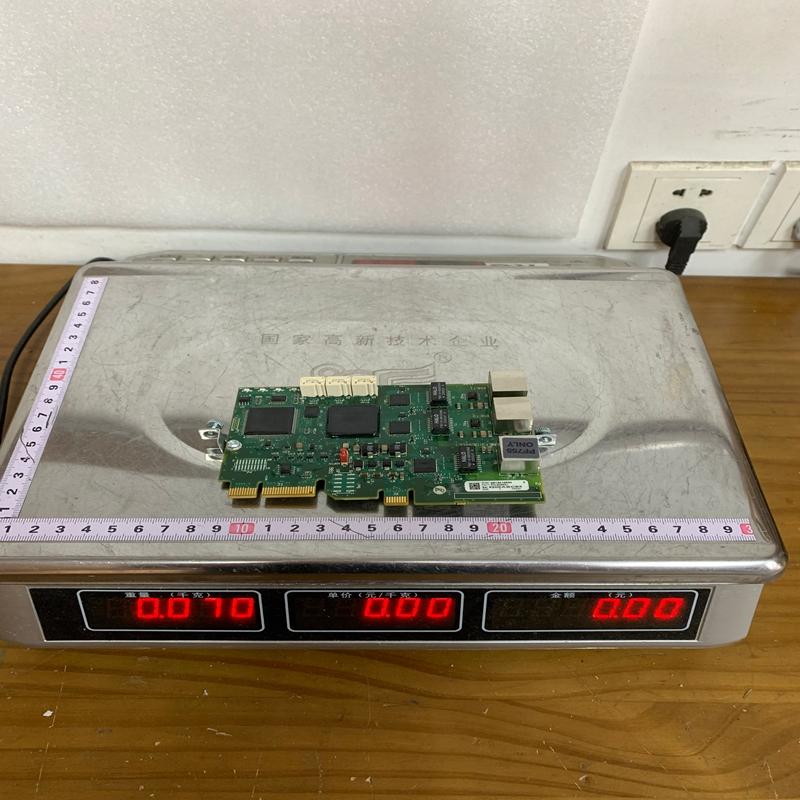

Product weight：0.07kg |
Packaging & Delivery
Product Details
The Allen-Bradley 20-750-ENETR is a high-performance, dual-port EtherNet/IP option adapter designed specifically for the PowerFlex 750-Series (mainly PowerFlex 753 and PowerFlex 755) Variable Frequency Drives (VFDs).
It mounts directly into the drive’s control pod option slots, acting as a gateway that facilitates seamless, real-time data exchange, drive configuration, and advanced diagnostics over a standard industrial Ethernet backbone. Its dual-port design features an embedded switch to support advanced network topologies like Device Level Ring (DLR) without requiring expensive external switches.
| Feature | Specification |
| Manufacturer | Allen-Bradley / Rockwell Automation |
| Catalog Number | 20-750-ENETR |
| Module Type | Dual-Port EtherNet/IP Communication Adapter |
| Compatibility | PowerFlex 753 and PowerFlex 755 AC Drives |
| Number of Ports | 2 × RJ45 Ports (ENET1 and ENET2) |
| Ethernet Data Rates | 10/100 Mbps (Full or Half-Duplex, Auto-Sensing) |
| Drive Interface Protocol | DPI (Drive Peripheral Interface) at 500 Kbps |
| Current Draw | 250 mA @ 14V DC (drawn directly from the drive's DPI bus) |
| Network Topologies | Star, Linear, and Device Level Ring (DLR) |
| Simultaneous Connections | Up to 30 Ethernet connections (16 MSG instruction connections) |
| IP Address Configuration | Rotary switches, BOOTP/DHCP utility, Studio 5000, or Drive HIM |
| Operating Temperature | -10°C to 50°C (14°F to 122°F) |
| Dimensions | 68 mm (H) × 26 mm (W) × 150 mm (L) |
Network Resiliency with DLR Support: The standout advantage of this module is its dual-port configuration which enables Device Level Ring (DLR) topology. If a single network cable segment breaks, the ring automatically redirects traffic in milliseconds, keeping your drive running and eliminating unscheduled downtime.
Reduced Hardware Costs (Daisy-Chaining): Thanks to the embedded switch technology, you can daisy-chain multiple PowerFlex drives sequentially in a linear topology. This minimizes the number of ports needed on your primary industrial switch, cutting down on infrastructure costs.
Simplified Integration & Commissioning: Features Embedded Electronic Data Sheets (EDS), meaning the module is automatically recognized by Logix-based systems. Engineers can configure, program, and commission the drive directly within Studio 5000 Logix Designer or Connected Components Workbench (CCW) software.
Real-Time Predictive Diagnostics: It channels critical parameters—such as energy consumption metrics, fault data, and drive status indicators—directly to your PLC and HMI. This enables proactive, predictive maintenance strategies.
Integrated Motion over Ethernet: When configured in Tap mode, the module supports integrated motion control, which ensures precise synchronization for high-performance motor control.
The 20-750-ENETR module is heavily relied upon across high-automation industrial environments requiring strict uptime:
Automotive Assembly Lines: Used where coordinated motion and DLR fault tolerance are non-negotiable to prevent costly assembly stoppages.
Material Handling & Conveyors: Ideal for multi-drive systems spanning large warehouses, where daisy-chaining multiple PowerFlex drives simplifies physical cabling layouts.
Water & Wastewater Treatment: Facilitates distant SCADA monitoring and real-time energy logging of heavy-duty pump and aeration drives.
Food & Beverage Processing: Integrates mixing, packaging, and sorting drives seamlessly into the central ControlLogix or CompactLogix PLC network for recipe management and rapid changeovers.
