Item NO.:
3300/03-02-00Payment:
T/T 、PayPal、Western UnionProduct Origin:
United StatesShipping Port:
XiamenLead Time：
1-2daysProduct Detail
3300/03-02-00 Bently System Monitor Module
| Brand：Bently Nevada | Model number：3300/03-02-00 |
| Colour：new | Warranty: 12 months |
| Lead Time：3-day working day | Country of origin: United States |

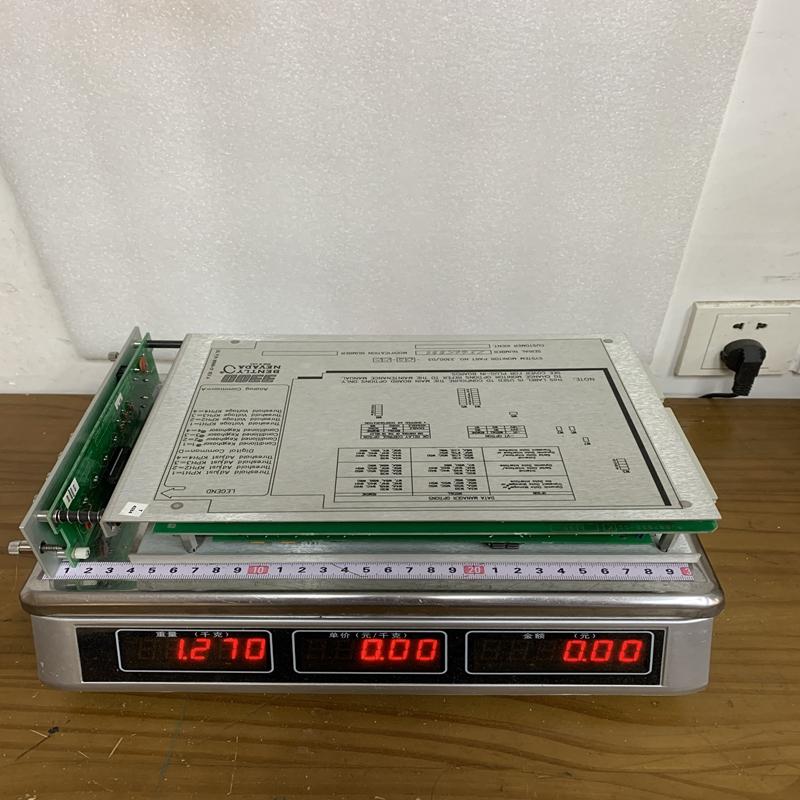

| Price: Please contact us | Product weight：1.27kg |
Packaging & Delivery
Shipping Port: Xiamen, China
Payment: Bank of Chicago, Bank of Singapore
Express cooperation: fedex, DHL, UPS and your express account
Service: Professional Sales provides 24 hours /7 days online service
Product Details
The Bently Nevada 3300/03-02-00 (often associated with the main board part numbers such as 89998-01) is the System Monitor Module designed for the legacy, highly reliable Bently Nevada 3300 Series Machinery Protection System.
As the central orchestrator of the 3300 rack, it coordinates power supply verification, alarm configurations, and phase-referencing (Keyphasor) signals for all other individual monitoring modules in the chassis.
The 3300/03-02-00 is responsible for managing rack-level utilities rather than performing direct machinery shutdown logic (which is handled locally by individual vibration or temperature cards).
3300/03: Base System Monitor Module.
-02 (Serial Data Interface - SDI): Equips the module with an internal communications card supporting RS-232 / RS-422 serial protocols to transmit static data to external host networks (DCS, PLC, SCADA).
-00 (Approvals Option): No specialized hazardous area approvals (standard environmental certification).
| Parameter | Specification | Notes |
| Manufacturer | Bently Nevada (Baker Hughes) | Part of the 3300 Legacy Series |
| Ordering Code | 3300/03-02-00 | Includes the SDI communications board |
| Main PCB Part Number | 89998-01 (or 87890-01 / 87900-01) | Typical assembly configurations |
| Power Consumption | $2.0\text{ W}$ (nominal); up to $4.6\text{ W}$ with SDI board | Draws power from the rack's power supply |
| Keyphasor® Inputs | Accepts up to 4 proximity probe signals | $10\text{ k}\Omega$ input impedance |
| Keyphasor Speed Range | 60 to 30,000 cpm (1 Hz to 500 Hz) | For rotational speed & phase calculation |
| Serial Communication (SDI) | RS-422 (max $1200\text{ m}$ / $4000\text{ ft}$) or RS-232 (max $30\text{ m}$) | Selectable; max baud rate of 19.2 k |
| System Power-Up Inhibit | $2.1 \pm 1\text{ seconds}$ | Prevents startup alarm spikes |
| Operating Temperature | $0\ ^\circ\text{C}$ to $+65\ ^\circ\text{C}$ ($+32\ ^\circ\text{F}$ to $+149\ ^\circ\text{F}$) | Inside the cabinet |
| Storage Temperature | $-40\ ^\circ\text{C}$ to $+85\ ^\circ\text{C}$ ($-40\ ^\circ\text{F}$ to $+185\ ^\circ\text{F}$) | For offline storage |
| Relative Humidity | 0% to 95%, non-condensing | Standard industrial rating |
Integrated Keyphasor Conditioning: Acts as a centralized distribution hub. It powers, terminates, and safely distributes up to four Keyphasor phase-reference signals to other monitor cards in the rack without signal degradation or cross-talk.
Automatic Startup Protection (Power-Up Inhibit): Automatically suppresses alarm outputs for approximately 2 seconds during system start-up or during brief voltage sags. This prevents false trips as sensors power up and stabilize.
Direct Control System (DCS) Connectivity: The built-in -02 Serial Data Interface card transmits vital static values (gap voltages, current alarm status, bypass state) to central plant control networks without requiring an expensive external gateway processor.
Simplified Maintenance Controls: Centralizes the "Alarm Reset" push button and provides physical test points on the front panel (buffered Keyphasor outputs via BNC connectors) for instant oscilloscope or analyzer connection.
Trip Multiply Control: Features centralized control of the "Trip Multiply" function, allowing operators to temporarily scale alarm limits (e.g., by $2\times$ or $3\times$) so machinery can safely pass through critical speed resonance zones during startup without tripping.
The Bently Nevada 3300/03-02-00 is widely utilized across heavy process industries to supervise critical rotating machinery assets:
Power Generation: Installed in steam turbine, gas turbine, and generator monitoring racks to coordinate vibration and phase-angle diagnostics.
Oil & Gas / Petrochemical: Used in multi-stage centrifugal compressor racks and high-pressure process pumps.
Heavy Machinery Plants: Monitoring large electric motors, massive fans, gearboxes, and expanders where precise phase analysis (via Keyphasor) is needed to calculate slow-roll vectors.
