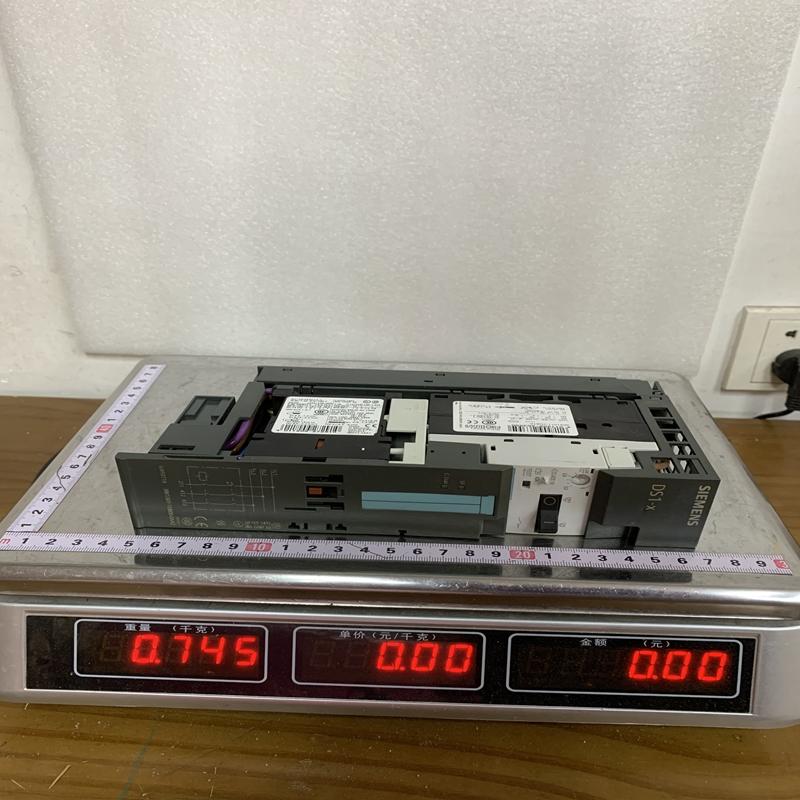

The Siemens 3RK1301-1DB00-0AA2 is an electromechanical Direct-On-Line (DOL) Motor Starter (DS1-X) designed for the SIMATIC ET 200S distributed I/O system.

It is designed to switch low-power 3-phase AC motors on and off directly, while offering built-in overload and short-circuit protection. It also features expandability to support external brake control modules.

Technical Parameters

Product Advantages

• Optimized Cabinet Footprint: Its integration within the modular ET 200S system merges protection, switching, and communication into one compact module, dramatically saving DIN rail space.

• Virtually Toolless Assembly: Plugs directly onto standard ET 200S terminal modules. High-voltage power lines are distributed via integrated busbars, eliminating tedious point-to-point power wiring.

• Fast Maintenance (Hot-Swapping): If a unit requires servicing, it can be swapped out without powering down the entire station or disrupting neighboring modules.

• Integrated Brake Control Interfacing: Includes built-in connection terminals to easily pair with a brake control module, ideal for motors equipped with spring-applied mechanical brakes.

1. Discontinued Lifecycle Status

This specific module has entered its official phase-out period. If you are designing a new control panel, it is highly recommended to migrate to the newer SIMATIC ET 200SP motor starter platform to avoid future spare parts availability issues.

2. Precise Current Tuning

• Before powering up, manually set the thermal overload dial on the front of the unit to match your motor's actual full-load amps (FLA). Keep in mind this unit's adjustable range is strictly 2.2 A to 3.2 A. Running a motor outside this current range with this starter will result in either nuisance tripping or a lack of real overload protection.

3. Terminal Module Compatibility

• The 3RK1301-1DB00-0AA2 must be paired with the correct ET 200S Terminal Module (TM-DS). Ensure the busbars on the terminal modules are rated for your total prospective power load when daisy-chaining multiple starters.
