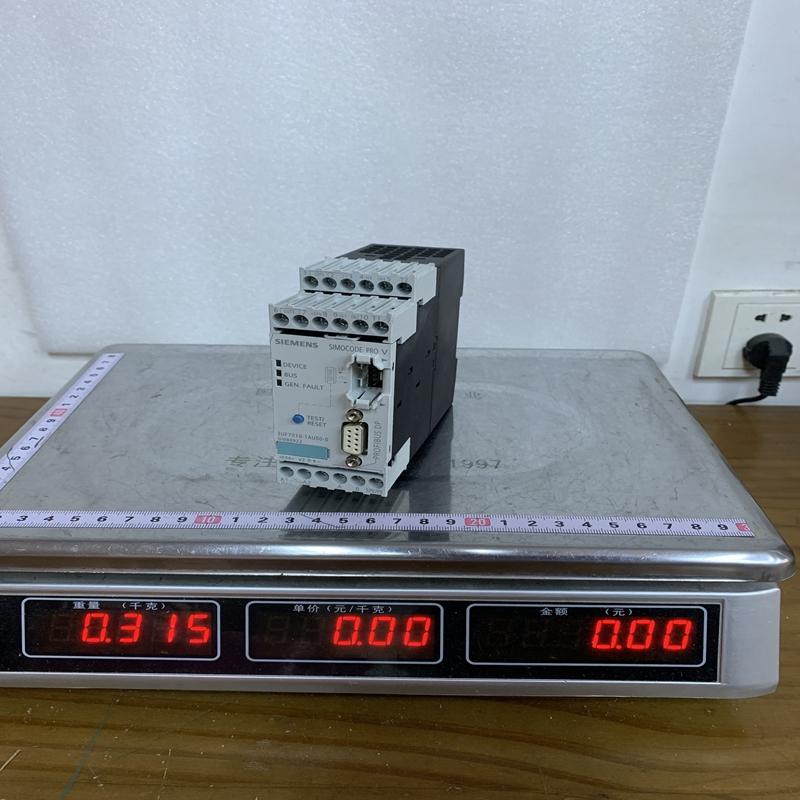

3UF7010-1AV00-0 Siemens the SIMOCODE pro V motor management system

3UF7010-1AV00-0 Siemens the SIMOCODE pro V motor management system

Packaging & Delivery

Shipping Port: Xiamen, China
Payment: Bank of Chicago, Bank of Singapore
Express cooperation: fedex, DHL, UPS and your express account
Service: Professional Sales provides 24 hours /7 days online service

Product Details

The Siemens 3UF7010-1AV00-0 is the central processing component—the Basic Unit—of the SIMOCODE pro V motor management system. Acting as an intelligent, modular motor control and protection system, it handles everything from motor protection and control to diagnostics and fieldbus communication.

This specific module features a PROFIBUS DP interface, enabling it to integrate directly into Siemens TIA Portal architectures, process control systems (such as PCS 7), or third-party PLC networks. It acts as the brain, connecting to separate current/voltage measuring modules, digital I/O modules, and operator panels to form a fully customized motor management solution.

Technical Parameters

Product Advantages

• All-in-One Control & Protection: Replaces traditional overload relays, control buttons, interlocking relays, and current/voltage indicators with a single, smart module.

• Precise Diagnostic Capabilities: Continuously monitors motor behavior (current, voltage, power factor, thermal load, and operating hours) to provide predictive maintenance warnings before a costly motor failure occurs.

• Highly Modular & Scalable: Enables the easy addition of expansion modules, such as temperature inputs, ground-fault modules, analog expansion cards, or operator control panels, based on your specific requirements.

• Independent Local Operation: In the event of a PLC or PROFIBUS communication failure, the SIMOCODE pro V can run pre-programmed logic locally, keeping critical process steps safely under control.

1. Prerequisite Accessory Requirements

Please Note: The 3UF7010-1AV00-0 is only the processing core. To function as a complete motor protection system, it must be paired with an external current measuring module (e.g., 3UF71...) and connected via a specific system ribbon cable (e.g., 3UF793...). It cannot measure current directly.

2. Isolation and Wiring Safety

• Ensure all 110–240 V power feeds to the basic unit and main motor contactors are disconnected before wiring.

• The internal 24 V DC power provided for the 4 digital inputs is intended only for connecting dry, potential-free contacts. Do not feed external voltage into these input terminals, as doing so will permanently damage the basic unit's internal circuitry.

3. PROFIBUS Addressing

• The PROFIBUS DP address must be assigned prior to commissioning. This can be configured either via the software (SIRIUS ES / TIA Portal), through an optional operator panel (3UF7200), or by using the addressing plug (3UF7910-0AA00).
