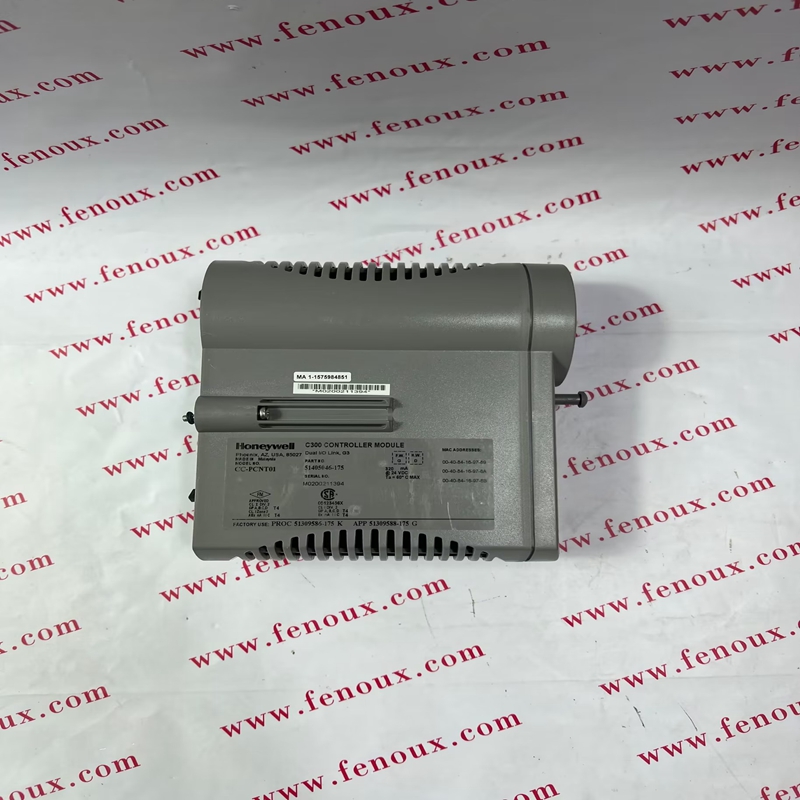

CC-PCNT01 Honeywell C300 Controller Module

Control Networks Supported FTE only 1 FTE only 1
Supported C300 Models 6, 7 CC-PCNT01
CC-PCNT02
CC-PCNT01
CC-PCNT02
Device Index Configuration Between 1 and 510 Between 1 and 510
IOTA Size 6 inches 6 inches
Number of I/O Links Supported 2 2
I/O Link Speeds Available 375 Kbaud (PMIO Link)
750 Kbaud (Series C IO
Link)
750 Kbaud (Series C IO
Link)
375 Kbaud (PMIO Link) is not
supported
Base Execution Periods Supported 50 ms 20 ms (optional)4
Redundancy Supported Yes Yes
Remote – Non-Series C I/O Supported Yes – PM I/O or Series A
I/O 3
No – Only Series C I/O
supported with limited
capacities.
I/O Module Execution Period 50 ms 20 ms
Configurable Values for CM/SCM/RCM Execution Periods 5 50, 100, 200, 500, 1000,
2000, 5000, 10000,
20000, 300000, 60000
ms.
20, 40, 80, 200, 400, 800
ms.
CMs Only – SCM/RCM/MR
not supported
Configurable Values of Peer Update Rates (period).
Defines the period at which data is updated for all ‘pull/get’
requests for peer data required by all blocks within a CEE.
100, 200, 500, 1000 ms. 100, 200, 500, 1000 ms.
C300 Time Source SNTP, PTPv2 SNTP, PTPv2
SNTP Update Period 1 minute 1 minute
GPS Time Support2 No No
PTP Update Period 30 seconds 30 seconds
